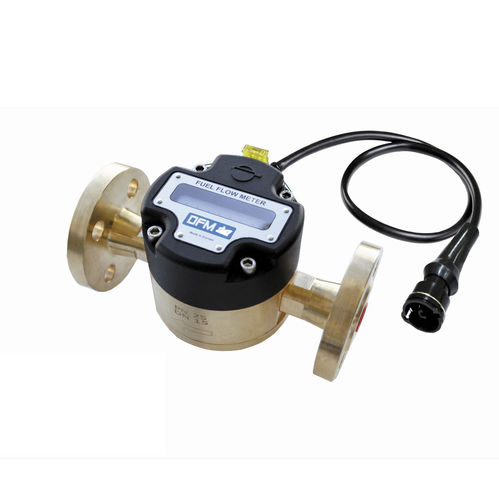

Positive displacement flow meter DFM Marine
rotary pistonfor oilfor fuel

positive displacement flow meter
positive displacement flow meter
positive displacement flow meter
Add to favorites
Compare this product


Characteristics

Technology
positive displacement, rotary piston
Fluid
for oil, for fuel
Installation
flange, threaded
Material
brass
Communication
with pulse output, digital output
Applications
for low flow rates, for high flow rates
Other characteristics
digital, high-accuracy, with display, with battery, with temperature sensor
Volumetric flow rate

Max.: 4,000 l/h
(1,056.7 us gal/h)

Min.: 20 l/h
(5.3 us gal/h)

Process temperature

Max.: 80 °C
(176 °F)

Min.: -20 °C
(-4 °F)

Process pressure

Max.: 25 bar
(362.59 psi)

2 bar
(29.01 psi)

Min.: 0.5 bar
(7.25 psi)

Description

DFM Marine fuel flow meter (fuel consumption sensor) is a tool for direct measurement of consumption of diesel fuel and other liquids with kinematics viscosity of 1.5 sSt to 6 sSt. Also, DFM Marine accurately monitors engine/pump operation time in various work modes – “Idle”, “Optimal”, “Overload”. DFM Marine is designed for operation on sea vessels, because its body is made of brass – corrosion-resistant material. DFM Marine fuel flow meter is used within stationary object monitoring systems and vehicle telematics (GPS tracking) systems: -Mining and quarrying machines -Railway machines -Watercrafts -Large diesel gensets, boiling/burning equipment DFM Marine flow meter has embedded flow computer – no need of using external devices or re-programming telematics unit (GPS tracker) for processing raw flow signals. Data from DFM Marine is used in diesel-generator control systems, vessel monitoring systems (compliance with NMEA 2000) and fleet management applications. DFM Marine allows to solve the following tasks: - Prevent fuel theft from fuel lines of engine - Establish accurate accounting of fuel consumption - Define real operation hours of vehicle/machine - Adopt predictive maintenance approach of fuel system - Test engine from fuel consumption point of view

VIDEO
