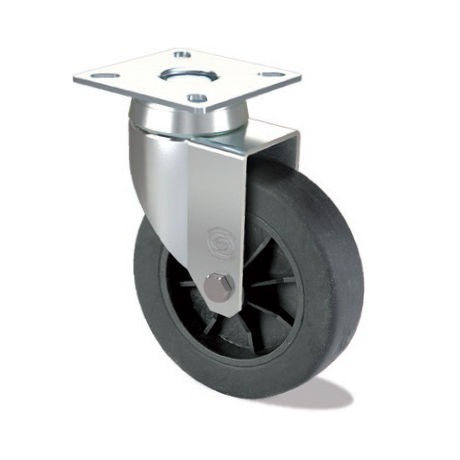

Swivel caster FG S5 GP seriesbase platelight-dutyfor furniture
Add to favorites
Compare this product
Characteristics
- Type
- swivel
- Mount
- base plate
- Other characteristics
- with ball bearing, double, for furniture, light-duty, rubber, polypropylene, pressed steel
- Load capacity
Min.: 10 kg
(22 lb)Max.: 70 kg
(154 lb)- Wheel diameter
Min.: 35 mm
(1.378 in)Max.: 100 mm
(3.937 in)- Tread width
18 mm, 22 mm, 23 mm, 24 mm
(0.71 in, 0.87 in, 0.91 in, 0.94 in)
Description
Rubber wheel with polypropylene centre. Swivel top plate bracket type S5, made of pressed steel, zinc plated, lubricated double ball bearing swivel head, dust protection.
