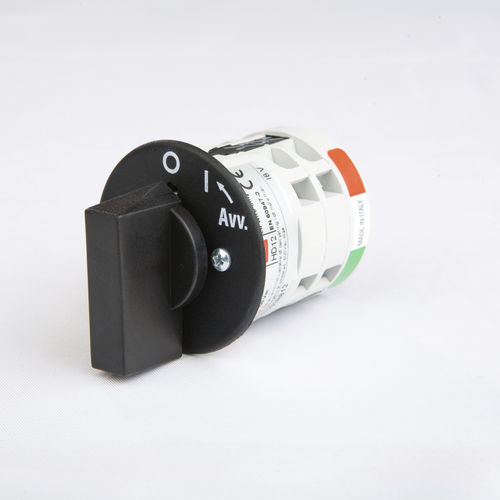

Selector switch
cammultipolejumper

selector switch
selector switch
Add to favorites
Compare this product


Characteristics

Type
selector, cam
Number of poles
multipole
Other characteristics
jumper

Description

Our catalogue of HD / HF series cam switches are a generation of traditional rotary switches, available from 12 to 63 A. They are made with materials that have a high degree of mechanical and electrical resistance as well as being heat resistant and self-extinguishing. IP45 protection grade (it is possible to increase this grade by adapting the relevant accessories); Terminal protection grade IP00 / IP20; rated insulation voltage 660 V; panel fixing ø 28 mm and 32 mm; Connection on DIN RAIL 35; screw connection terminals clamping screw plates, up to a capacity of 32 A with wire attachments for high series; Angles of manoeuvre 30°-45°-60°-90°; Double break contacts in silver alloy with forced positive opening; Outer casing in polyamide plastic. RoHS – EC –IMQ certification. RoHS – EC –IMQ certification.
