Thermocouple TPK-04L

multidrop

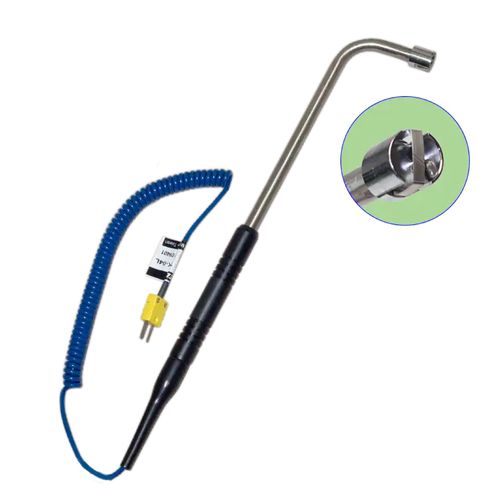

K Type Temperature Thermocouples with TPK-04L / TPK-04LS product IDs are designed for various applications. The TPK-04LS features 90 degree short angle surface probe. Its temperature range is -50 ° C to 500 ° C (-58 ° F to 932 ° F). The diameter of the product is 14 mm to 185 mm length in the stainless steel material. The hand holder is made of durable materials and its length is 120 mm. The length of the coiled cable is 1500 mm. Short angle arm is 25 mm long. TPK-04L has 90 degrees Long Angle Surface Probe with a maximum temperature range -50 ° C to 500° C (-58 ° F to 932 ° F). It features 14 mm diameter and 185 mm length. The hand holder is made of stainless steel and features 120 mm length. It has a coiled cable with total 1500 mm length. Total length of the long arm is 63 mm that is enough for every application. The variations between TPK-04LS and TPK-04L are the length of short angle arms that is 25 mm in TPK-04LS and 63 mm in TPK-04L. The Objective surface should be kept clean, as a result of oil, dust, or other insulating material. For example, paint will affect the measurement accuracy.
