function generator
FG 52 Tecpel Co., Ltd.

Add to MyDirectIndustry favorites
function generator function generator - FG 52
{{requestButtons}}

Characteristics

  • Type:

    function

Description

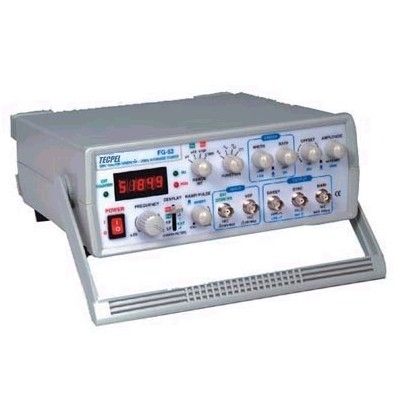

The FG 52 is a function generator developed by Tecpel. The unit features a frequency range of 0.05Hz to 5MHz, a linear or log sweep function and invert function, a duty cycle control, and an auto range and auto gatetime counter.

It is also equipped with a counter resolution of 0.001Hz, 4 waveforms such as Sins, Square, Triangle and DC, amplitude of 20Vp-p / Open, 10Vp-p / 50 Ohm load, attenuator of X20 (-26dB) +/- 2%, X1 (0dB), and an output impedance of 50 Ohm (+/- 2%).
