Wall-mount box SCS-R 6/8
rectangularaluminum

wall-mount box
wall-mount box
Add to favorites
Compare this product


Characteristics

Construction
wall-mount
Configuration
rectangular
Material
aluminum
Width

187 mm
(7.4 in)

Height

128 mm
(5 in)

Depth

58 mm
(2.3 in)

Description

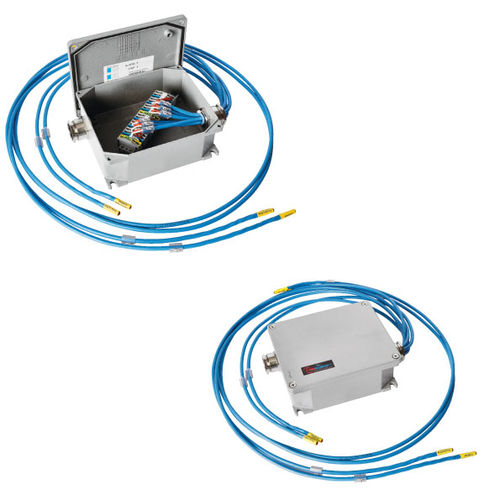

The SCS-R is a box designed and manufactured by TECSYSTEM for a quick, safe and economic connection of the sensors which detect the temperature of cast resin transformers. The length of the cables, as well as the type of sensors, can be determined according to the specific needs of the customer. In the aluminum version, as shown in the photos, it comes with 6 Pt100 sensors type PTSE with 2.5 m cable each. Box features SCS-R 6 dimensions: 197x143x67 mm (PG16 cable glands included) SCS-R 8 dimensions: 224x169x81 mm (PG16 cable glands included) Material: die-cast aluminum Cable gland features Dimensions: PG16 or PG21 Material: Polyamide nickel brass Terminal board features Wiring section: from 0,25 to 1,5 mm² Flame resistance: UL 94V0 Operating Temperature: from -40°C to +120°C The application of the SCS is intended for industrial environments and limited to Tecsystem products and / or pre-defined optional accessories. The installation of the SCS is foreseen on industrial resin transformers with IP00 protection degree and internal working environment with: temperature from -25°C to + 40°C and max 90% non-condensing humidity. On specific request it is possible to assemble SCS with special components, which must be approved by the customer.
