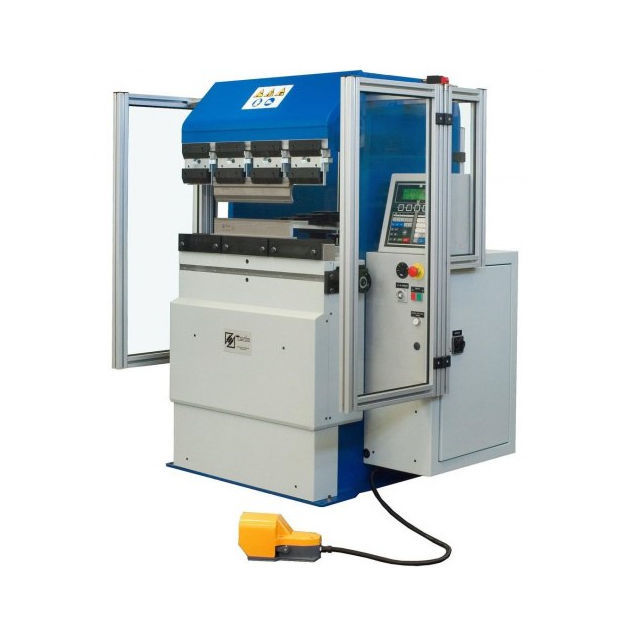

Hydraulic CNC press brake
max. 18 t | SCS 18.8 CNC
TEDA srl
EASY TO USE
2-axis numerical Control TEDA CNT 100 with microprocessors to control following axes:
* Y Axis cylinder stroke with bending angle settings in degrees
* X Axis back gauge with removable fingers equipped with vernier
R Axis (vertical movement) is manually controlled
FAST
Extremely fast bending cycle thanks to the elimination of all the deceleration times, speed changes, etc.. High time saving during the bending cycle resulting in great productivity
FLEXIBLE
It is possible to get the bending angle in two different ways:
* Bu CN (angle automatic calculation)
* By AUTOTEACHING: ability of the CN to store the bending angle manually found by the hand wheel located on the side of the machine
SAFE
Thanks to the lateral barriers the operator can work in total safety
EFFICIENT
Despite the presence of lateral barriers even the most complicated items can be easily handled and laterally removed
UNIQUE
The innovative shape of the ram allows to manufacture U-profiles with no depth limitation.
COMPACT
It is so solid that it does not need foundations.
Structural stiffness guaranteed and deflection reduced to the minimum.
