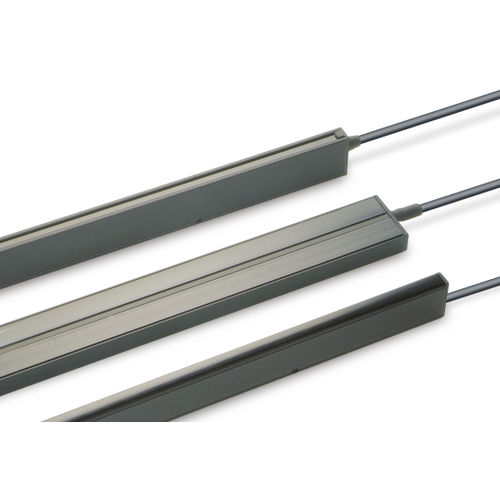

safety light curtain / multibeam / through-beam / weather-resistant
SG 1 series Telco Sensors

{{requestButtons}}

Characteristics

  • Function:

    safety

  • Type of beam:

    multibeam

  • Configuration:

    through-beam

  • Protection level:

    weather-resistant

  • Other characteristics:

    with integrated controller

  • Operating range:

    Min.: 0 m (0'00")

    Max.: 4 m (13'01")

Description

The SG 1 light curtain mechanism features an independent transmitter detector, SGT and receptacle detector that are placed in reverse positions to one another. These detectors consists of a rugged frame and an aluminum profile in a narrow structure measuring 10 x 28 mm, high profile edge structure as well as a water-proof narrow structure measuring 12 x 30 mm.

Additionally, it comprises of a 12 - 36 V dc power supply, 5 wire, stable conditioned transmission output and a provision of light or dark feature. The test input can be utilized for activating or deactivating relaying power for trials.
