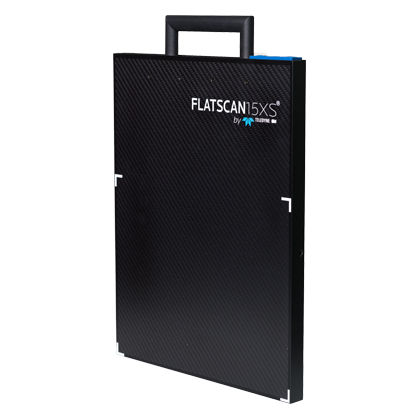

X-ray detector FLATSCAN15 XSdiode arrayinspectioncompact
Add to favorites
Compare this product
Characteristics
- Detected entity
- X-ray
- Technology
- diode array
- Application
- inspection
- Other characteristics
- compact, portable
Description
Lightweight, compactness, and straightforward handling are the key factors that led to the design of the FLATSCAN15 XS. Developed both with and for EOD operators, the FLATSCAN15 XS weighs just 3.5 Kg and is truly compact. Combined with the CP120B or CP160B X-Ray generators, it is the ideal choice for inspections in narrow places or areas that are difficult to reach.
PRODUCT INFORMATION
Sensor type : Linear diode array
Resolution : 40 AWG / 1.25 lp/mm
Pixel size : 400 μm
Dynamic range (grey levels) : 16 bits
Active area : 307 x 230 mm
Max. penetration in steel with CP120B : 25 mm
Max. penetration in steel with CP160B : 30 mm
External dimensions : 425 x 320 x 25 mm
Weight : 3.5 Kg
Operating temperature : -10 to +50 °C
Storage temperature : -10 to +65 °C
Communication protocol : Bluetooth, Wifi, or cable
