wastewater sampler / vacuum / composite / portable

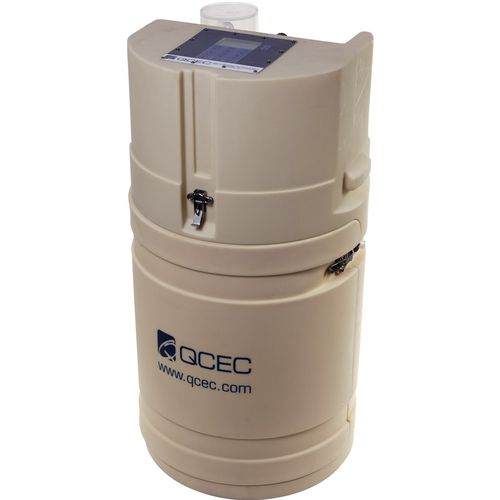

CVE-16-P Teledyne Isco



  • Sample type:


  • Technology:

    vacuum, composite

  • Other characteristics:



The model CVE-16-P is our portable, composite/sequential vacuum wastewater sampler. It relies on proven vacuum technology to deliver high sample integrity and reliable performance. The vacuum pump exceeds EPA transport velocity requirements and generates a stronger purge. The maximum vertical lift is 23 feet on a standard unit, and 28 feet is available as an option. This portable unit is double walled, insulated, and has a rotationally molded polyethylene plastic case. Weighing 36 pounds, the CVE-16-P is easily transported to sample wastewater and effluents from sewers, flumes, manholes, etc. A two year warranty is standard.

Standard Features
15-400mL adjustable sample container
Heavy duty diaphragm vacuum pump
Operates on 12 VDC (AC power optional)
Pre-sample/post-sample purge -- 0-99 sec.
Auto shut-off or continuous run
Delay start -- 1 thru 9999 min.
Constant sampling interval 1 thru 9999 min.
Variable sampling -- Time/Flow (1-24)
Real Time Clock
Inputs (pulses, 4-20mA, 0-10 VDC, 0-5VDC)
Start/Stop programming
Data logging
Pass code protection
Low battery auto shut down
liquid detection
