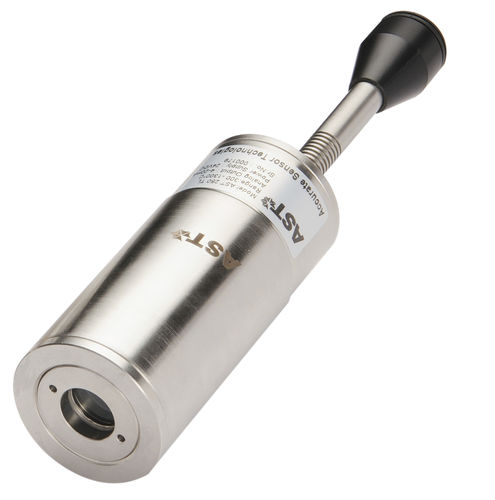

IR pyrometer / digital / fixed / surface-mount
AST IR CAST2C TEMPSENS

{{requestButtons}}

Characteristics

  • Technology:

    IR

  • Display:

    digital

  • Configuration:

    fixed, surface-mount

  • Other characteristics:

    USB, high-accuracy, IP65, 4-20 mA, with laser pointer

  • Applications:

    industrial

  • Temperature:

    Max.: 1,700 °C (3,092 °F)

    Min.: 700 °C (1,292 °F)

Description

IR CAST 2C is a highly accurate digital two colour Rectangular measuring field IR pyrometer for non contact temperature measurement specially used in foundries for molten metal.It measures wide range of temperature between 700°C to 1700°C.The Instrument features high accuracy.

Rectangular field of view for molten metal.

Wide temperature ranges from 700°C to 1700°C.

Spectral range 0.7 μm....1.15 μm

Fast response time within milliseconds.

Two Color model,Through the lens view finder sighting options,Analog output options available like 0...20mA, 4...20mAand 0...10V.

USB2.0 Digital output and RS-232/RS-485 Serial interface.User friendly PC software for communication
