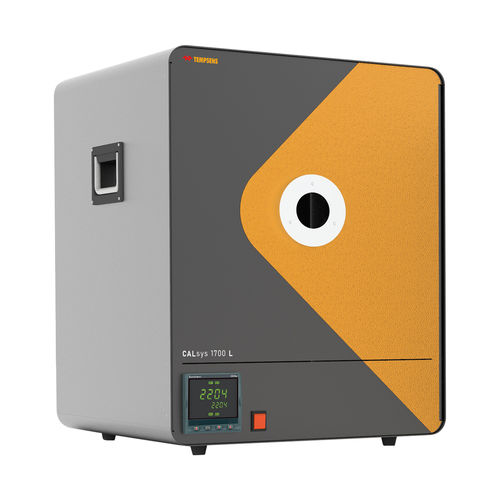

Temperature calibrator Calsys 1700L
for thermocouplesdry-blocklaboratory

temperature calibrator
temperature calibrator
Add to favorites
Compare this product


Characteristics

Measured physical value
temperature
Applications
for thermocouples
Options
dry-block, laboratory, industrial, high-temperature
Temperature

Max.: 1,700 °C
(3,092 °F)

Min.: 500 °C
(932 °F)

Description

CALsys 1700L offers easy to use temperature calibrator with high temperature range from 500 to 1700°C. It is a highly stable standard furnace for calibrating thermocouples / RTD. This calibrator can be used on site for high temperature calibration and also find application in glass, electric power, automotive and material process industry. The comparison volume is a metallic block of special material, which has a diameter of 37 mm and 240 mm long. The temperature of the calibrator is set and controlled by a self tuned PID controller with automatic super fine adjustment. Key Features >Wide temperature range from 500 °C to 1700 °C >CALsys 1700L extremely quick to reach various temperatures heats up room temp to 1700 °C in 30 Minutes >Excellent calibration accuracy with stability ±1.5°C at 1700°C
