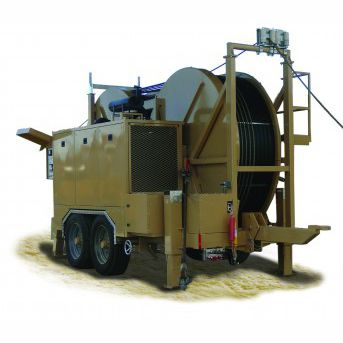

Nylon cable puller-tensioner AFS804

The AFS804 puller-tensioner is suitable to string one conductor. The bull-wheel grooves are made of wearproof nylon sectors. This huge puller-tensioner is completely electronically controlled. Note: The machine is also available with special nylon sectors kit for two bundle conductors up to 38 mm of diameter (ALL080). PULLER PERFORMANCE MAX PULL 200 kN SPEED AT MAX PULL 1.3km/h MAX SPEED 5 km/h PULL AT MAX SPEED 50 kN TENSIONER PERFORMANCE MAX TENSION 200 kN MAX SPEED 5 km/h Note: the basic machine performance is calculated at 20°C and at sea level CHARACTERISTICS BULL-WHEEL DIAMETER 2400 mm MAX CONDUCTOR DIAMETER 60 mm MAX ROPE DIAMETER 31 mm MASS 16000kg ENGINE DIESEL 129 kW (173 hp) COOLING SYSTEM water ELECTRICAL SYSTEM 12 V HYDRAULIC TRANSMISSION 1 hydraulic half-closed circuit that allows very sensitive tensioning control and negligible deviations of tension in case of speed change. The machine is provided with tension presetting system.
