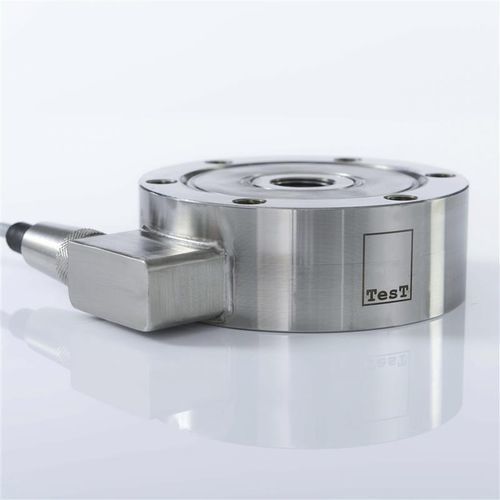

tension/compression force transducer / pancake type / high-precision / hermetic
301 series TesT GmbH

{{requestButtons}}

Characteristics

  • Type:

    tension/compression

  • Form:

    pancake type

  • Other characteristics:

    high-precision, hermetic, stainless steel

  • Rated force:

    Max.: 600 kN

    Min.: 5 kN

Description

The model series 301 manufactured by Test GmbH is an electrical force transducer, made from stainless steel, with a sturdy and stiff design. This device is used to measure compressive as well as tensile forces and is suitable for dynamic conditions. Its low construction height permits space-saving applications, e.g. for controlling assembly forces, on high-speed presses as well as for production-integrated materials testing.

Moreover, this force transducer is available as CAL version that provides the accuracy of class 0,5 according to ISO 376 and is applied for calibration applications.


Measuring ranges: 5 kN - 10 kN - 20 kN - 50 kN - 100 kN - 200 kN - 300 kN - 500 kN - 600 kN
Measuring uncertainty: Standard version ≤ ± 0,08% of nominal value
Version H: ≤ ± 0,05% of nominal value
Version Class 0,5 according to ISO 376

Subject to technical changes
