hydraulic force gauge / compact
1001 ff TesT GmbH

Add to MyDirectIndustry favorites
hydraulic force gauge / compact hydraulic force gauge / compact - 1001 ff
{{requestButtons}}

Characteristics

  • Type:

    hydraulic

  • Options and accessories:

    compact

  • Rated force:

    Min.: 160 N

    Max.: 600,000 N

Description

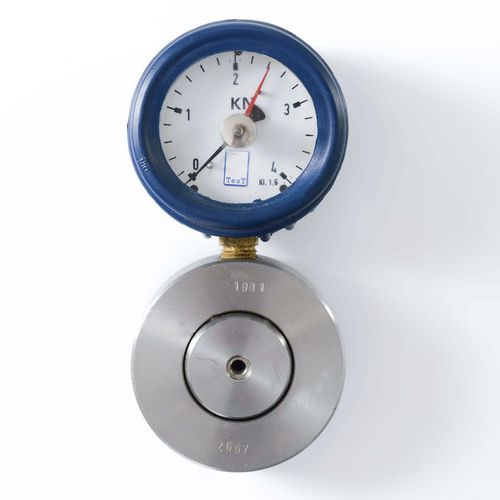

The 1001 Series, manufactured by TesT GmbH, is a hydraulic compact force gauge equipped with a small dynamoneter and flat building method. It has a manometer of 63 mm, compression body of 75 mm, and measuring range from 160 N up to 40 kN. This is used in applications such as hydraulic force and occasional control measurements.



Measuring ranges: 160 N - 250 N - 400 N - 600 N - 1 kN - 1,6 kN - 2,5 kN - 4 kN - 6 kN - 10 kN - 16 kN - 25 kN - 40 kN

Measuring uncertainty: ≤ ± 2% of nominal value

Subject to technical changes
