Puncture tester 13-50

detector

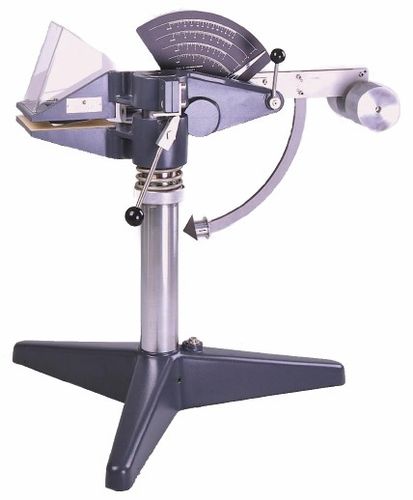

The Puncture Tester is designed to measure the energy required to puncture corrugated board and therefore help assess the protective qualities of that board. In addition to the risk of damage from transport and stacking there is the potential of being struck by sharp objects. A puncture head, consisting of a stainless steel right-angled triangular pyramid is attached to a solid arm. The arm, under load, swings through an arc until it contacts the specimen clamped between two horizontal plates. The upper plate is fixed; the lower is spring loaded. Each has a triangular hole to accommodate the puncture head. A collar, loosely fitted to the cylindrical extension to the puncture head, detaches after penetration and adheres to the specimen, keeping the hole open and preventing and braking action on the pendulum. The instrument is built to avoid any vibration that would affect the test values.
