Pt100 temperature sensor / RTD / hermetically-sealed / for the pharmaceutical industry
SSA200 Thermal Detection

{{requestButtons}}

Characteristics

  • Technology:

    Pt100, RTD

  • Other characteristics:

    hermetically-sealed

  • Applications:

    for the pharmaceutical industry, sterilizer chamber, for pharmaceutical autoclaves

  • Temperature:

    Min.: -50 °C (-58 °F)

    Max.: 200 °C (392 °F)

Description

SSA200 with hermetically sealed connector is designed for use with portable process plant in the pharmaceutical industry. The sensor is subjected to sterilization cycles and CIP operations without the need of removing. The specifications are - ideal for pharmaceutical flasks, fermenter vessels and other equipment that needs to be sterilized, available in PT100 resistance thermometer configuration, metallic parts made up of Grade 316L (1.4404) stainless steel.

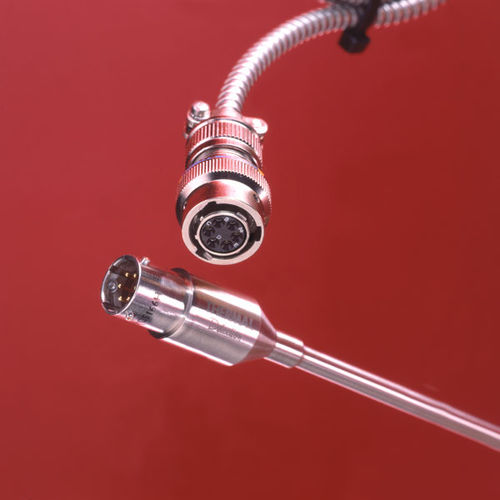

It is equipped with Aerospace/military style connector that utilize a glass based die-electric cell. For sanitary or hygienic flange, probe stem can be fitted with Tri-cover type.
