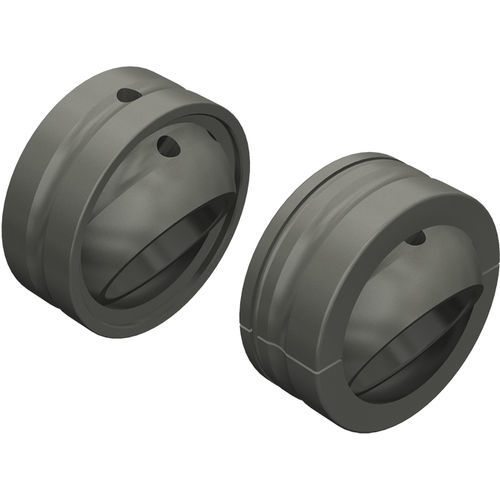

spherical plain bearing / swivel / split / for heavy loads
THK

{{requestButtons}}

Characteristics

  • Type:

    spherical, swivel

  • Other characteristics:

    split

  • Applications:

    for heavy loads

  • Length:

    Max.: 105 mm

    Min.: 10 mm

  • Inside diameter:

    Max.: 260 mm

    Min.: 12 mm

Description

Model SB
The most widely used series. Used for heavy loads since the spherical contact area has a large width. The outer ring is split at two points, enabling the inner ring to be accommodated.

Model SA1
This type of Spherical Plain Bearing is widely used in Europe. The outer ring is split at one point, and the width and thickness are smaller than model SB. Thus, this model can be used in small space.
