Water cleaner / single-phase / mobile
Wils-Away™ 500 Thomas C Wilson/TC Wilson

Characteristics

  • Type:

    water

  • Power source:

    single-phase

  • Configuration:

    mobile

Description

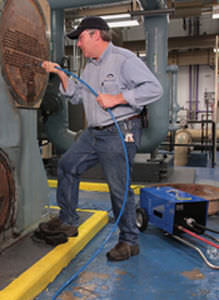

The Wils-Away 500 Electric Tube Cleaning System cleans straight and curved tubes in heat exchangers, condensers, chillers, absorbers, water heaters, coolers, and other small diameter pressure vessels. WAW-500 Series drive units are equipped with a safety shaft coupling that snaps under accidental overload, protecting the shaft from breakage. Each kit features a spare coupling and removal tool. One kit cleans varying tube sizes — you only need to replace the brush size and shaft’s casing assembly.

Applications:
Cleaning Straight and Curved Tubes in Heat Exchangers, Condensers, Chillers, Absorbers, Water Heaters, Coolers, and Other Small Diameter Pressure Vessels
3/8 – 1 1/2-Inch (9.5 to 38.1mm) Outer Diameter Tubes
Removing Light to Medium Soft Deposits

Specifications:
Dolly-Mounted
Drive Unit: 55 lbs.; 12”H x 23”W x 11 1/2”D
(25Kg; 305 x 584 x 292mm)
Speed: 1,725 rpm
Power: 1/2 HP (WAW-500 Series)

Kit Includes:
Electric Drive Unit
Foot Pedal-Single Direction
Spare Safety Shaft Coupling
25-foot Shaft & Casing (7.6M)
Set of 6 Nylon Spiral Brushes
- or -
Expanding Bronze Brush and Spare Refill Set
Service Manual SM-223 (WAW500, 1000)

UL and CE certified.
