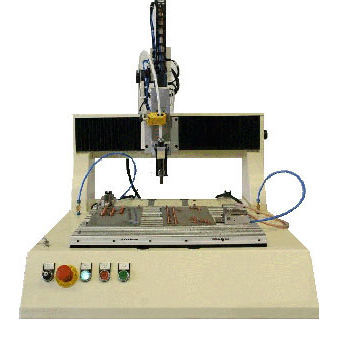

CNC Studs welder 500 x 300 mm The system developed is a CNC controlled very compact bench-type positioning system for automatic stud welding production. This system has the ability to automatically load and weld Ø 3 mm to Ø 8 mm studs over a 500 X 300 mm process area within a tolerance of 0.2 mm accuracy. Cost effective operation already with small and medium quantities. The system includes a pneumatic valve for automatic product clamping. Technical Specifications Welding range: Ø 3 - Ø 8 mm Travel-scope: X-axis: 500 mm / Y-axis: 300 mm Clamping area T-slot plate: 540 x 340 mm with 15 T-grooves X-Y axis: running in spherical ball bushing and sliding guides Z-axis: Standard Pneumatic / Motorized in option Positioning accuracy: +/- 0,2 mm Repeating accuracy: +/- 0,1 mm Resolution:: +/- 0,025 mm Max. traverse rate: 8 m/min Welding Head: 1 welding head (Capacitors Discharge or Short Cycle) Mains supply: 230 VAC ± 10% (50 Hz) Size (w x h x l): 1000x1000x1000 mm Actuations: stepper motors User friendly handling: operation and program creation via menu-driven plain text display and touch screen Optional: - Manual and/or automatic stud feeding
