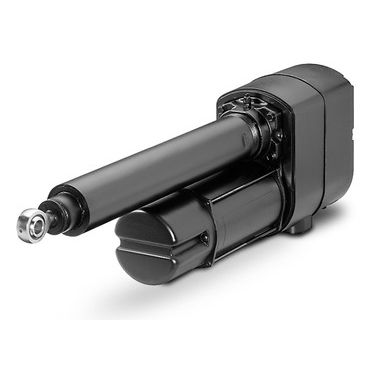

Linear actuator Electrak® 205electricball screwstainless steel
Add to favorites
Compare this product
Characteristics
- Movement
- linear
- Type
- electric
- Technology
- ball screw
- Material
- stainless steel
- Motor
- AC
- Protection class
- maintenance-free
- Applications
- industrial, brake, security
- Other characteristics
- positioning, control, with potentiometer, with brake
- Stroke
610 mm
(24.016 in)- Force
6,800 N, 17,800 N
- Speed
44 mm/s, 52 mm/s
(144.36 ft/s)- Ambient temperature
Min.: -25 °C
(-13 °F)Max.: 65 °C
(149 °F)
Description
Electrak 205 AC Linear Actuators
Electrak® 205 actuators feature multi-step positioning capability through a 10-turn potentiometer for precise feedback control when used with Thomson actuator control systems. With adjustable integral limit switches, the automatic shut off travel range can be easily adjusted. Fully gasketed housing and motor safety seals protect internal components from harsh industrial environments.
Electrak 205 Features
• Stainless steel extension tube
• Ball screw drive system
• Electrical brake for accurate positioning
• Motor with thermal switch
• Adjustable end of stroke limit switches
• Rear clevis for pin-to-pin mounting
• 10K Potentiometer (385Ω/inch)
• Universal mounting clamp for tube mounting
• Metal spur gears for durability
• Maintenance free
