linear actuator / electric / screw / self-locking
Electrak FA14 Thomson Industries, Inc.

{{requestButtons}}

Characteristics

  • Movement:

    linear

  • Type:

    electric

  • Technology:

    screw

  • Other characteristics:

    self-locking, stainless steel

  • Stroke :

    600 mm

  • Force:

    2,250 N, 6,800 N

  • Speed:

    32 mm/s, 37 mm/s

  • Torque:

    1.8 Nm (1.33 ft.lb)

Description

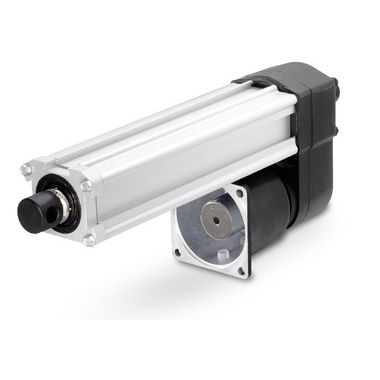

Electrak FA14 Non-Driven Linear Actuators
The Electrak® FA14 actuator is designed for robust and rugged conditions. Incorporating a flange mounting system with either a ball or acme screw drive, our customers can easily connect the motor of their choice. These actuators are able to withstand harsh conditions and are essentially maintenance free.
Electrak FA14 Features
T-slot grooves for sensor mounting
Flange mount for customer-supplied motor
Stainless steel extension tube
Corrosion free aluminium cover tube
Clevis mounting, Trunnion possible
Overload clutch for mid/end stroke protection
Holding brake on ball screw models
Self-locking on acme screw models
CE compliance
Electrak FA14 Options
Manual override
Alternative adaptor positions
Custom color
