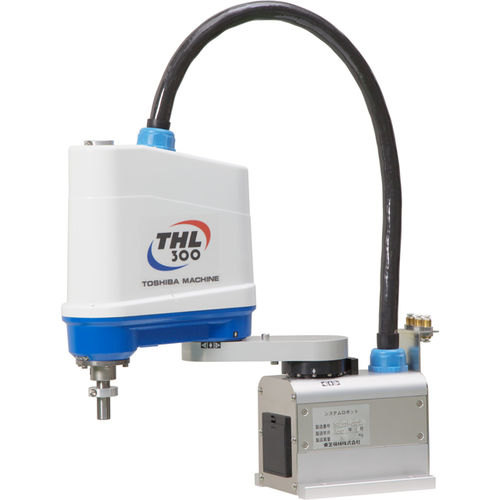

SCARA robot THL300
4-axisloadingunloading

SCARA robot
SCARA robot
Add to favorites
Compare this product


Characteristics

Type
SCARA
Number of axes
4-axis
Function
loading, unloading
Mounting
floor-mounted, ceiling-mounted, wall-mounted
Application domain
for the food industry, for the electronics industry, for the pharmaceutical industry, for the plastics industry
Other characteristics
short cycle time
Payload

5 kg, 10 kg
(11.023 lb, 22.046 lb)

Reach

300 mm
(11.81 in)

Repeatability

0.015 mm
(0.0006 in)

Speed

5.1 m/s, 11.2 m/s
(16.7 ft/s, 36.7 ft/s)

Weight

12 kg
(26.5 lb)

Length

Max.: 1,000 mm
(39.4 in)

Min.: 300 mm
(11.8 in)

Description

THL series SCARA robots include the THL300 and THL400 with arm lengths of 300mm and 400mm respectively. Each THL offers a payload of 5kg. Cycle times (with 2kg load) are 48s for the THL300 and 47s for the THL400. All THL robots feature a working envelope of 4 axes, with a Z-axis rotation of 360°. Product Features & Benefits Low cost Light to medium duty Ideal for loading and unloading applications *1:Acceleration/deceleration rates may be limited according to the motion pattern, load mass and amount of offset. *2:When the environment temperature is constant 20℃. Positioning repeatable accuracy in one-direction movement. Not absolute positioning accuracy. *3:Horizontal 300mm, vertical 25mm, round-trip. Continous operation is not possible beyond the effective load ratio. *4:Pneumatic joints are provided on the base. Please refer to the drawings for the details of the pneumatic joints. Pipes to be provided by the customers.
