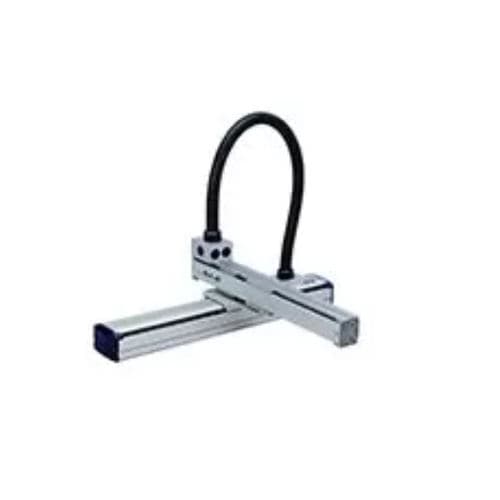

Compact linear module
ball screwwith toothed belt drive2-axis

compact linear module
compact linear module
Add to favorites
Compare this product


Characteristics

Options
compact, ball screw, with toothed belt drive
Number of axes
2-axis

Description

With the adoption of oil-free seals in the LM guides and the ball screws, the BA-III series does not require maintenance for an extended period of time. Equipped with a compact AC servo motor, the total axial length has been shortened. Models with longer effective strokes have been added to expand the operating ranges of the robots. Maximum loading mass> Single axis: horizontal 250 kg, X-Y two-axis combination: 100 kg Maximum stroke: 4450 mm Maximum speed ball screw driven: 1200 mm/s, timing belt driven: 2000 mm/s Positioning repeatability ball screw driven: 0.01 mm, timing belt driven: 0.04 mm Equipped with an AC servo motor (absolute encoder) not requiring home position return
