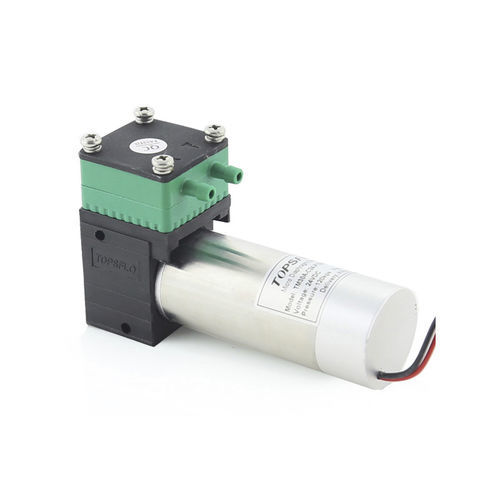

Air pump / electric / diaphragm / self-priming
TM30A-C TOPSFLO INDUSTRY AND TECHNOLOGY CO., LIMITED

Characteristics

  • Media:

    air

  • Operation:

    electric

  • Type:

    diaphragm

  • Priming:

    self-priming

  • Domain:

    for medical applications

  • Other characteristics:

    brushless, sampling

  • Flow:

    Min.: 0 l/min (0 us gal/min)

    Max.: 4.5 l/min (1.19 us gal/min)

  • Pressure:

    Min.: 70 Pa (0.01 psi)

    Max.: 120000 Pa (17.4 psi)

Description

Features:
1.Highest Performance/Size Ratio
Innovative and efficient engineering designs enable the TM30A Series to push the performance envelope in a lightweight, compact size.
2.Performs Quieter
Optimized head, chamber, and flow path reduce noise without compromising performance.
3.Lasts Reliably Longer
Using the advanced diaphragm elastomer and superior brushless motor design sets the highest benchmark for service-free operation that exceeds 10,000 hours.
4.Uncontaminated flow
no contamination of the media due to oil-free operation
5.Little vibration
Because of leading edge technologies, top quality bearing, superior brushless motor
6.High level of gas tightness
thanks to stress-optimised structured diaphragm, newly-designed valves and sealing systems, precise placement of the pump head
7.Extreme chemical resistance
The use of chemically resistant materials optional such as FFPM, PTFE,FPM or other material combinations for the parts which allows the corrosive gas to be pumped.
8.Optimal solution for your application
a wide standard range of materials, motors , voltages configurates multiple components system selected

Specification:
Motor Type: Brushless DC motor
Max flow rate: 4.5L/min
Max pressure: 120Kpa, Max vacuum: 70Kpa
Voltage: 6V/12V /24V
Ideal Life Time: 15000 Hours Working Mode: Continuous or Interrupt

Application:
The versatility of TOPSFLO pumps allows a wide field of applications to be covered. Over many years our pumps have proved themselves in the following areas:
Industrial pressure and vacuum applications
Portable Analytical Instruments
Medical Diagnostic Equipment
Air Quality Sampling Monitors
Respiration Monitors
Gas or Odor Leak Detectors
