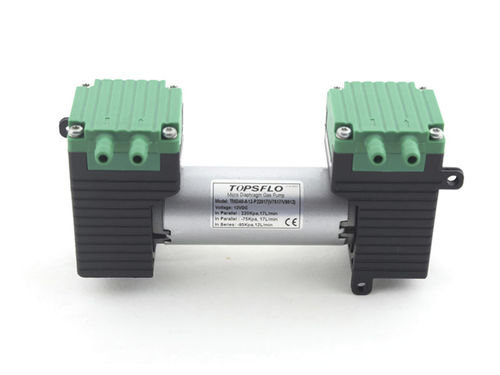

Air pump / with DC motor / diaphragm / self-priming
TMD40-A TOPSFLO INDUSTRY AND TECHNOLOGY CO., LIMITED

Characteristics

  • Media:

    air

  • Operation:

    with DC motor

  • Type:

    diaphragm

  • Priming:

    self-priming

  • Other characteristics:

    two-stage

  • Flow rate:

    17 l/min (4.49 us gal/min), 12 l/min (3.17 us gal/min)

  • Pressure:

    Min.: 0 Pa (0 psi)

    Max.: 220000 Pa (31.91 psi)

Description

Overview:
The Double head pump TMD40 Series offers multiple component configurations allowing them to beused for either vacuum operation, pressure operation, or alternating vacuum and pressure operations. The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliabler, highly efficient.

Double head pump TMD 40 pumps can be mounted in any position and can deliver up to 12 l/min, 17L/min (dual head) depending on the model and will operate against pressures of up to 220Kpa.

Specification:
Motor Type: Brush DC motor
Max flow rate: 12L/min,17L/min
Max pressure: 220Kpa, Max vacuum:75Kpa
Voltage: 12V
Ideal Life Time: 5000 Hours
Functions : Can dry-running, Self-priming
Working Mode: Continuous or Interrupt
Noise Class form 1M 50dB /Max
Inlet OD 6.5mm/ID 3.4mm
Outlet OD 6.5mm/ID 3.4mm
Hose suggestion: ID 5.0mm
Dimension 171mm*40mm*75mm
Weight 450 g


Features:
1.Highest Performance/Size Ratio
2.Performs Quieter
3.Lasts Reliably Longer
4.Uncontaminated flow
5.Little vibration
6.High level of gas tightness
7.Extreme chemical resistance
8.Optimal solution for your application

Application:
Industrial pressure and vacuum applications
Portable Analytical Instruments
Medical Diagnostic Equipment
Air Quality Sampling Monitors
Respiration Monitors
Gas or Odor Leak Detectors
