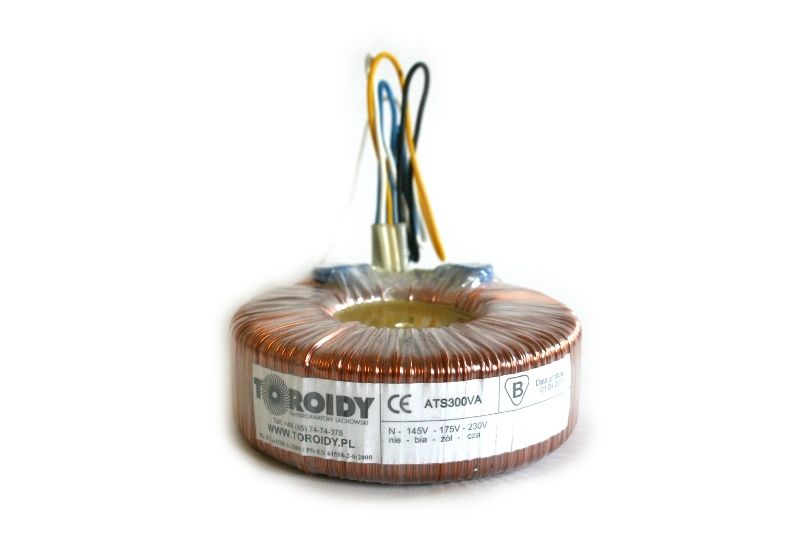

Toroidal power transformer
20 - 5 000 VA
TOROIDY.PL
PROJECT CO-FINANCED BY THE EUROPEAN REGIONAL DEVELOPMENT FUND UNDER THE OPERATIONAL PROGRAMME INNOVATE ECONOMY
"DOTACJE NA INNOWACJE"
--------------------------------------------------------------------------------------------------------------
Toroidal autotransformers with multiple taps for fan speed regulation serve the purpose of airflow control, fitted in ventilation and heating systems.
Can be also used in a power supply with the multiple output voltage regulation.
Technical specification:
Nominal Power: 20 - 2000VA
Input voltage: 1 - 500V
Frequency: 50 - 60Hz
Output voltage: 10 - 1000V (multiple taps)
Construction / Insulation class: I / B (130⁰C)
Ambient temperature: 40⁰C
Protection degree: IP-00
Insulation voltage test: 4kVAC (RMS)
-
