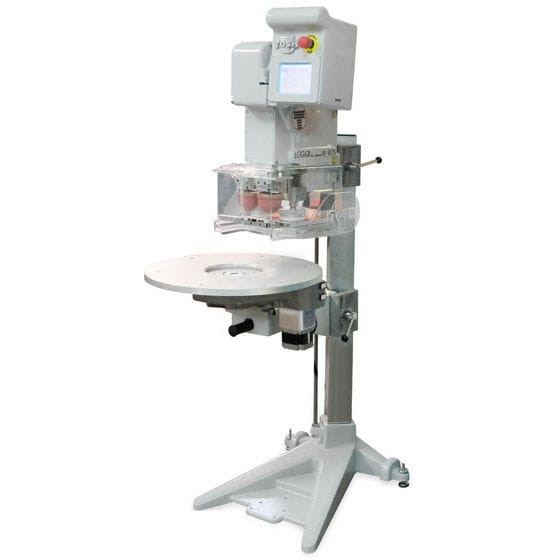

High speed two color pad printing machine
770 N, max. 5000 c/h | Logica Mimicro N90S
TOSH
Numerically controlled pad printing machine for either one or two colours print.
Up to 2 colours dia. 90 mm
Fully electrical operation.
Perfect for the approach to the pad printing process in an economic way or for who wants to realize a flexible system for multicolour printing with high mechanical cadence.
Operation: electric with numerical control
Printing force: 770 N
Maximum printing speed: adjustable up to 5000 c/h
Number of colours: 1 - 2
Maximum dia. ink cup: 90 mm
Standard ink cup sizes: 1 dia. 90 mm
70x145 mm (oval)
Vertical stroke: 102 mm
Maximum pad height: 90 mm (57 mm with pad shuttle system)
AC supply: 220/240 V - single phase - 50/60 Hz
Average consumption: about 100 W
Size and weight (basic model): 443 x 590 x h. 743 mm - about 50 Kg
