3/4-axis CNC machining center FH1600SW-ihorizontalCAT50120 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3/4-axis
- Spindle orientation
- horizontal
- Spindle mount
- CAT50
- Number of tool stations
- 120 tools
- Applications
- cutting
- Other characteristics
- high-speed, high-performance, high-rigidity, high-precision, high-power
- X travel
3,000 mm
(118 in)- Y travel
1,900 mm
(75 in)- Z travel
2,100 mm
(83 in)- Rotational speed
4,000 rpm
(25,133 rad.min-1)- Power
74 ch
(74 hp)- Workpiece max height
2,100 mm
(83 in)- Work feed X-axis
35,000 mm/min
(23 in/s)- Work feed Y-axis
40,000 mm/min
(26 in/s)- Work feed Z-axis
40,000 mm/min
(26 in/s)- Table load capacity
8,000 kg
(17,637 lb)- Weight
75,000 kg
(165,346.7 lb)- Overall length
10,100 mm
(397.6 in)- Overall width
14,600 mm
(574.8 in)- Overall height
4,520 mm
(178 in)
Description
Toyoda's FH1600SW-i horizontal machining center features the largest work envelope in its class with a maximum swing of ⌀126" (⌀3,200 mm) and a workpiece height of 83" (2,100 mm). Engineered for heavy cutting, the FH1600SW-i's 5.9" (150 mm) diameter quill spindle allows for powerful cutting with high material removal rates.
VIDEO
Other Toyoda Machine Works products

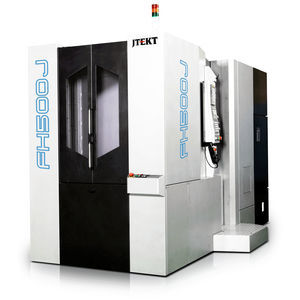

HORIZONTAL MACHINING CENTERS
