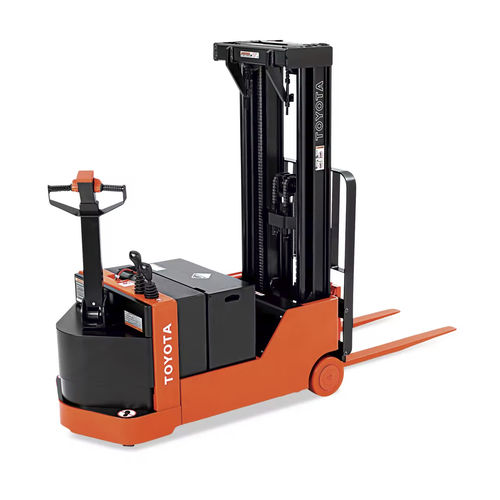

Counterbalanced stacker truck 6BWC series
electricwalk-behind24 V

counterbalanced stacker truck
counterbalanced stacker truck
Add to favorites
Compare this product


Characteristics

Energy
electric
Operator
walk-behind
Voltage
24 V
Applications
transport, for pallet
Other characteristics
straddle, counterbalanced, steel
Carrying capacity

2,000 lb, 3,000 lb, 4,000 lb
(907.2 kg, 1,360.8 kg, 1,814.4 kg)

Lifting height

Max.: 189 in

Min.: 100 in

Free lift

6 in, 12 in

Height of mast when lowered

83 in

Height of mast when raised

172 in, 176 in

Overall width

34.1 in

Fork width

4 in

Fork length

42 in

Fork thickness

1.5 in, 1.75 in

Turning circle radius

56.7 in, 62 in, 68.3 in

Battery capacity

650 Ah

Motor power traction

2.8 kW
(3.807 hp)

Motor power lifting

3.6 kW
(4.895 hp)

Travel speed

Max.: 3 mph
(4.83 km/h)

Min.: 2.8 mph
(4.51 km/h)

Lifting speed

Max.: 249 mm/s

Min.: 137 mm/s

Weight

3,600 lb, 4,800 lb, 5,800 lb
(1,632.93 kg, 2,177.24 kg, 2,630.84 kg)

Description

Toyota’s Counter-Balanced Electric Pallet Stacker is a nimble, highly-versatile lift that complements nearly any primarily indoor application. Balanced similar to a traditional forklift and without baselegs, the Counter-Balanced Electric Stacker can fit into tight spaces. Extraordinarily durable and budget-friendly, the Toyota Counter-Balanced Stacker can help increase both your uptime and your bottom line. Special Features 2,000-4,000 lb. Lifting Capacity 24-Volt Motor Up to 180 in. Lift Height Performance Heavy Duty Stacking Toyota’s Counter-Balanced Stacker goes where others fear to stack. This lift is capable of lifting wide loads while operating seamlessly in aisles that are too narrow for traditional sit-down forklifts. Warehouse navigation is now simplified. With a 24-Volt Electrical System, MOSFET programmable controller, and 30-inch wide ITA Class II Hook-Type Carriage, the Counter-Balanced Stacker can be an asset to your company for years to come. Quality, Durability & Value Toyota’s Counter-Balanced Stacker is only 34.1 inches wide but can lift up to 180 inches and can store and stack loads weighing up to 4,000 pounds. This product comes with easy-to-operate controls that are ergonomically multifunction control handle to ensure the operator is comfortable and productive shift after shift. The Counter-Balanced Stacker also has a no-tools-required floorboard and a punched plate entry and exit step.
