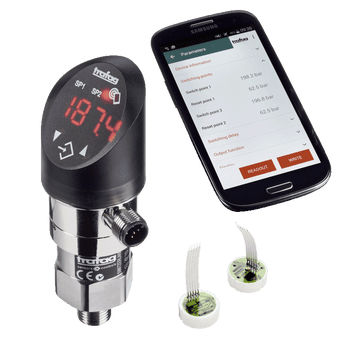

Thin-film pressure switch DPC 8380

relativefor liquidsstainless steel

Main features Parameterization also via NFC-smartphone App (Android) Display and electrical connection are independently rotatable 335°/343° Analogue output switchable mA or V Integrated datalogger Measuring range adjustable About The DPC 8380 is the ideal combination of pressure switch and transmitter with pressure display. The parameters are set on the device or in a timesaving way via an NFC - smartphone App. The settings in combination with a comprehensive set of options make the DPC 8380 suitable for a wide range of industrial applications. Technical Data Product code 8380 Name DPC Designation Display Pressure Switch Product category Pressure transmitters Electronic pressure switches Measuring range 0 ... 0.2 to 0 ... 100 bar 0 ... 2.5 to 0 ... 1500 psi adjustable Measuring principle Thick-film-on-ceramic Accuracy @ 25°C typ. ± 0.5 % FS typ. ± 0.3 % FS typ. Output signal 4 ... 20 mA, 0 ... 5 VDC, 1 ... 6 VDC, 0 ... 10 VDC, switchable mA or V Electrical connections Male electrical connector M12x1, 5-pole Male electrical connector M12x1, 4-pole Pressure connections G1/4" f; G1/4" m; G1/2" m, DIN3852-E; 1/4"NPT m; R1/4" m, DIN3858; 7/16"-20UNF m, DIN3866; 7/16"-20UNF m, SAE4 (J1926); 7/16"-20UNF f, SAE J512, valve opener; 9/16"-18UNF m, SAE6 (J1926); G3/4" frontal membrane Media temperature -25°C ... +85°C Ambient temperature -25°C ... +85°C
