roller conveyor / for boxes / for containers / for trays
Transnorm System GmbH



  • Technology:


  • Product transported:

    for boxes, for containers, for trays

  • Other characteristics:

    horizontal, compact, transfer, sorting, distribution, diverter

  • Maximum load:

    50 kg (110.231 lb)

  • Speed:

    1.5 m/s (4.92 ft/s)

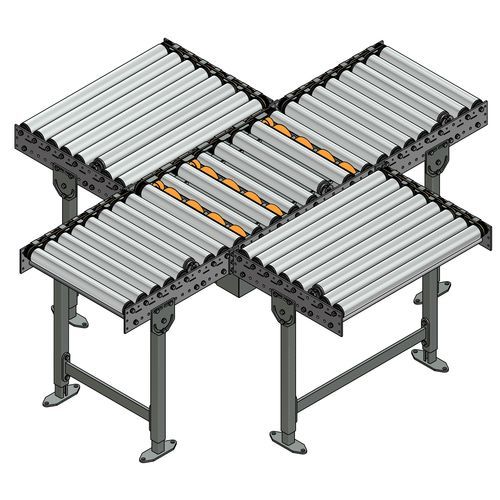

TRANSNORM Lift-up Roller Transfer - A powerful and economical standard module
This lift up roller transfer is a powerful and economical standard module for sorting and distribution based on the 24V technology. In systems with medium throughput capacities up to 1,800 units bins, trays, boxes or unit loads with a flat surface suitable for roller conveyors can be diverted at a 90-degree angle in opposite directions.

TRANSNORM Lift-up Roller Transfer offers the following benefits
Standardised, economical solution for infeeding and outfeeding capacity of up to 1,800 pieces/h
Low wear and easy maintenance
Compact, flat design without external interference contours
Easy integration into existing systems
Also allows custom retrofitting to the size of conveyor goods
Drive via motor-driven rolls (diverter with 24V technology)
Safe and efficient
Combination with different TRANSNORM roller conveyors
Option of diverting in opposite directions
Complete reversibility
Fields of Application
Outfeeding / infeeding loops in pre-storage zones especially from automatic small parts warehouses (bins/boxes) and rack warehouses
Sorting lines in box and bin conveyor systems
Packaging and palletizing
Distribution centres of wholesale, logistics service providers and parcel services
Print and paper industry
Machinery and conveyor OEMs
Typical loads: bins, boxes, trays, containers and unit loads with a flat surface suitable for roller conveyors
