PP-CARBON The first and only Polypropylene carbon fibers reinforced
PP-CARBON The first and only Polypropylene carbon fibers reinforced
PP CARBON 3D PRINTING SPECS
ppcarbon palla
DOWNLOAD FULL SPECS PDF
POLYPROPYLENE CARBON 3D PRINTING PARAMETERS
3d Printing Difficulty
EASY TO
PRINT
3D Printing Plate Tempaerature
PLATE
TEMP. C°
0-40 c°
3D Printing Nozzle Temperature
NOZZLE
TEMP. C°
240° +/-10°
3D Printing Plate Material
PLATE
MATERIAL
Carbon sheet, PP sheet
3D Printing Speed
PRINT
SPEED
40 mm/s
It can be your trustworthy industrial companion.
The right balance with carbon fibers and polypropylene to obtain a good material print.

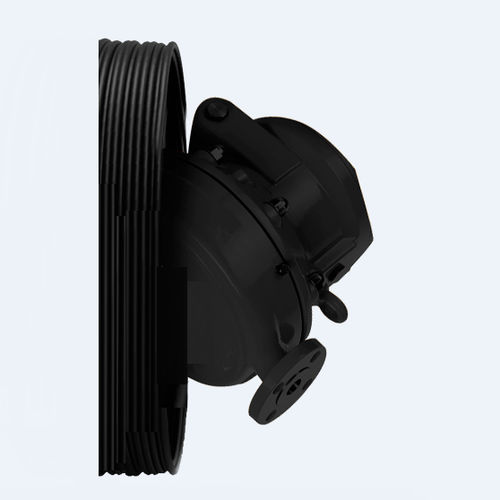

Tested on special fluid pumps, today is always working.
Best use are in circulation pumps, body and turbine, components in contact with many aggressive fluid, ready for ATEX applications, components for automotive engine, cover for railway communications cases.
Hygroscopy don't disturb this material, so it's not necessary pre-dry it before use.
PP CARBON Tips & Tricks
0.4 mm is the mininum diameter of the nozzle with carbon fibers reinforced. Carbon fibers are abrasive, we suggest to use a nozzle in hardened or tempered metal, like Widia, or wear resistance internal surface, like ceramics or other. NO tefloned surface!
