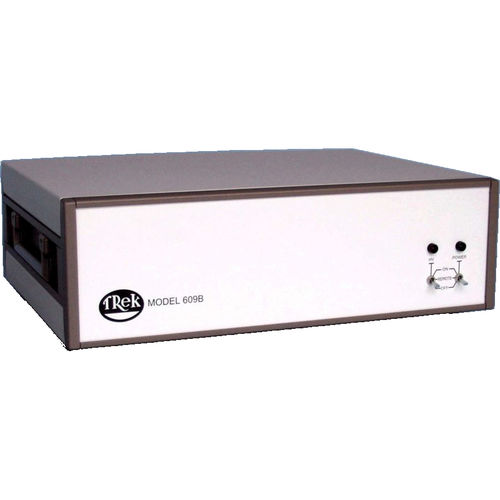

Power amplifier 609B-3

differentialDChigh-voltage

The Model 609B-3 is a DC-stable, high-voltage power amplifier used in industrial and research applications. It features an all solid-state design for high slew rate, wide bandwidth and lownoise operation. The four-quadrant, active output stage sinks or sources current into reactive or resistive loads throughout the output voltage range. This type of output is essential to achieve an accurate output response and high slew rate demanded by a variety of loads such as highly capacitive or reactive loads. It is configured as a non-inverting amplifier, an inverting amplifier or as a differential amplifier. Different input configurations can be wired into the unit. Key Specifications Output Voltage: 0 to ±10 kV DC or peak AC Output Current: 0 to ±2 mA DC or peak AC Slew Rate: Greater than 30 V/μs Large Signal Bandwidth: DC to greater than 400 Hz (1% distortion) Gain: Fixed at 1000 V/V Applications AC or DC biasing atmospheric plasma dielectric barrier discharge electroactive polymers (EAP) electrophoresis electrophotography electrorheological fluids electrostatic deflection electro-optic modulation ferroelectric material characterization ion beam steering mass spectrometers Features and Benefits Four-quadrant output for driving capacitive loads Closed loop system for high accuracy Short-circuit protected for equipment protection DC-stable for programmable supply applications Low output noise for ultra-accurate outputs NIST-traceable Certificate of Calibration provided with each unit CE compliant
