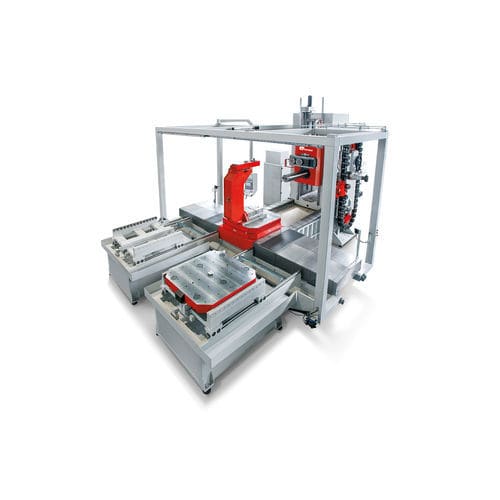

CNC milling-turning center DS900/300C

verticalwith rotary tableheavy-duty

The DS900/300C model begins the “heavy duty” range of Trevisan machining centers. Both for dimensions that can be turned and for capacities on the table. The machining center DS 900/300 C performs turning operations with a stationary piece up to 1,500 mm in diameter. The standard table can carry up to 7,000 kg with a 1,250 mm or 1,400 mm table. Available options increase the capacity to 12,000 kg with a 1,600 x 1600 mm table all with available pallet change systems. The table is specifically designed to guarantee an excellent evacuation of the machining residue and a watertight cratering on board the machine, with easy accessibility for the operator. The DS900/300C – DS900/300C RAM model, as the whole range of Trevisan machining centers, is equipped with a turning head that allows you to perform turning operations with a fixed work piece. This device, in particular, turns out to be even more versatile as it is equipped with 2 tool-clamps in its carriage so that a single tool can be moved from the first to the second tool-clamp and perform a wider range of turning diameters. The turning device allows execution of spherical, conical, cylindrical turning, and threading operations always using ideal cutting parameters due to the ability to work with constant cutting speed. In this model, the U-Axis facing head is balanced with counterweights that come out in the opposite direction of the tool holder carriage in order to optimize accuracy.
