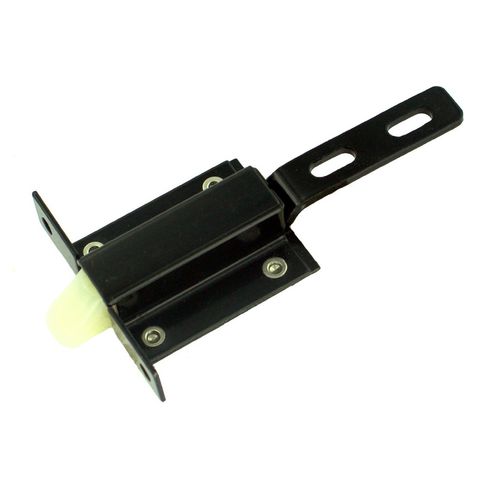

Sliding bolt latch 060-0900
steelstainless steelnylon

sliding bolt latch
sliding bolt latch
sliding bolt latch
sliding bolt latch
Add to favorites
Compare this product


Characteristics

Type
sliding bolt
Material
steel, stainless steel, nylon
Applications
sliding door

Description

This plunger bolt was designed for small compartment and access doors where low cost slam action latching is desired. It features a plastic plunger bolt for ease of closing/opening and a flange mount that allows for internal door mounting (recessed). Features/Benefits .500" (12.7mm) allowable travel Low operating efforts Corrosion resistant Non-metallic plunger bolt for low operating efforts Flange mount allows for internal door mounting (recessed) Finish Black painted Material Base, cover, slide: Cold rolled steel Spring: Stainless steel Plunger: Nylon Available Custom rods up to .188" (4.5mm) diameter Installation Recommended use of (2) 3/16 (4.5mm) diameter pop rivets or #12 type AB, B or BP steel thread forming screws
