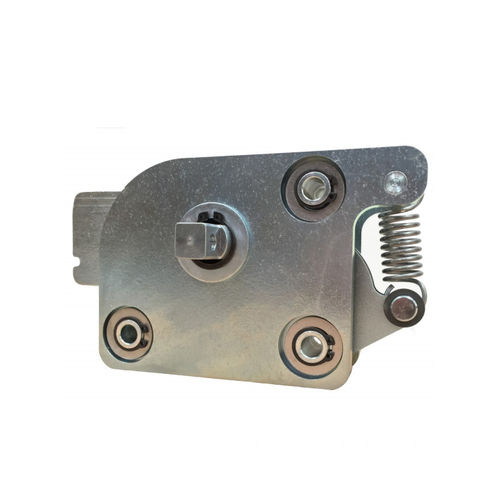

Cam lock 140-0100

handlefor doorssteel

This heavy duty cam lock module is designed to be located in high stress areas and used as a primary mechanism for securing personnel doors, rear doors, hatches and windows or as a secondary mechanism in conjunction with a primary door latch. Providing additional strength and security, it can be used singularly or in multiples and can be operated and controlled via rods or cables from a central release such as TriMark's 010-1000 Inside Release Handle. Features/Benefits Heavy duty modular construction is received fully assembled and tested Integrated detent holds the cam in 90 degree orientations Square drive detail allows for interior handle attachment and exterior emergency release Available Clockwise and counter-clockwise rotation to lock Customization features available Please inquire - special cases and mounting details Material High strength steel construction Heat treated cam and cross shaft Finish Zinc plated, clear chromate steel components Optional finishes available including: Black Magni coating, Tan/Olive CARC paint and Tan/Olive powder coating Installation Easy to install, module mounts with (3) M8 x 1.25 Class 8.8 fasteners Tighten to the manufacturers' recommended torque value For best results, lock cam to have minimal clearance to the door frame 1.0mm-2.0mm (0.040"-0.080")
