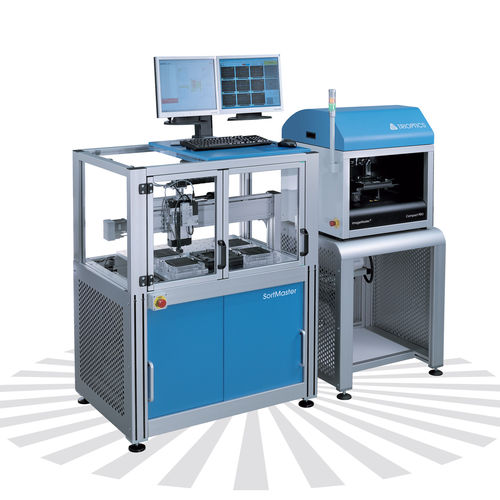

Automatic sorting system SortMaster® Compact

SortMaster Compact is an automated sorting system and the ideal complement to the MTF quality control of mobile phone lenses. In combination with the ImageMaster® PRO, OptiSpheric® IOL PRO 2 and WaveMaster PRO, the SortMaster Compact reliably sorts the products with the cycle time of 3 or 2.2 seconds. The objectives must be sorted from the high-precision measurement tray directly into the output blister trays. The output trays can represent 3-4 quality grades of the products. An automatic signal will stop the process when one tray is finished. The tray can be changed manually and the sorting process and the MTF measurement will start. The automated process and the direct data exchange with the ImageMaster® PRO reduce errors in a 24-hour operation, so that the SortMaster Compact can increase production and yield. Key Features Automated sorting of mobile phone lenses, mass production consumer optics, intraocular lenses (IOL) and lens elements Sorting time per sample 3 sec with one gripper and 2.2 sec with two grippers Units per hour (UPH) 1100 pcs or units per hour (UPH) 1500 pcs (2 grippers) Motor system servo motor; spindle stage with encoder Applications Automated sorting of samples measured with one of TRIOPTICS’ tray-based measurement devices: Mobile phone lenses Digital camera lenses Lens elements Copier and enlarger lenses Intraocular, contact and other ophthalmic lenses Endoscopes and other medical optics Automotive objective lenses Binoculars and telescopes Military sighting devices Image intensifiers Machine vision lenses Optics for space applications
