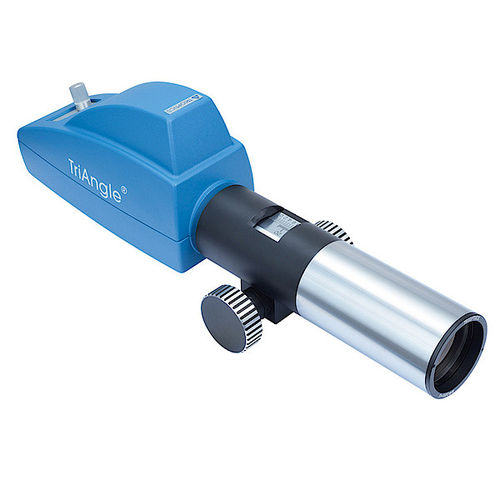

Electronic autocollimator TriAngle® Focus

The TriAngle® Focus electronic autocollimator series is based on the standard TriAngle® design but employs focusing objective tubes for the measurement of slightly spherical mirror surfaces or some other systems with optical power. TriAngle Focus is ideally suited for the contact-free optical radius measurements. Key Features Focusing objective tube Maximum set of measurement functions including various wedge and prism measurements Compatibility with objective tubes of different focal lengths Available with 8 different objective tubes with focal lengths ranging from 100 mm to 1000 mm A variable measuring range and accuracy performance between 2.5 and 0.2 arcsec depending on the focal length Modern high resolution CCD sensors offering the best image quality and signal to noise ratio OptiAngle 5 Software Applications Analyzing spherical surfaces Measurement of radius of curvature High precision tilt angle measurement Aligning multiple optical surfaces Wedge angle measurement in reflection Wedge angle measurement in double pass 45° prism error measurement 90° prism error measurement Wobble measurement Angle calibration tasks Straightness measurement Flatness measurements Corner cube inspections
