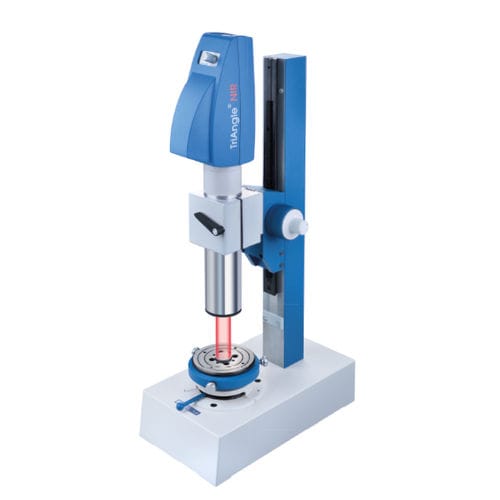

The TriAngle® NIR electronic autocollimators are based on the standard TriAngle design but employ NIR LED illumination for the reticle. The TriAngle NIR electronic autocollimators are commonly used for applications which require measurement at the design wavelength in the NIR.
It is used for measurements on material which only transmit light in the NIR range, such as are used in night vision devices. Another application is the laser beam alignment of lasers that emit light at a wavelength in the NIR spectral range.
Key Features
Standard wavelength: 1064 nm (other wavelengths available on request)
Maximum set of measurement functions including various wedge and prism measurements
Compatibility with objective tubes of different focal lengths
A variable measuring range and accuracy performance between 2.5 and 0.2 arcsec depending on the focal length
Modern high resolution sensors offering the best image quality and signal to noise ratio
NIR LED illumination
OptiAngle 5 Software
Applications
Measurements at wavelengths in NIR
High precision tilt angle measurement
Aligning multiple optical surfaces
Wedge angle in reflection
Wedge angle in double pass
45° prism error
90° prism error
Wobble
Angle calibration tasks
Straightness measurement
Flatness measurements
Corner cube inspections
