Thickness measuring device / distance / non-contact / optical lens
OptiSurf® TRIOPTICS

Characteristics

  • Measured value:

    thickness, distance

  • Technology:

    non-contact

  • Applications:

    optical lens

Description

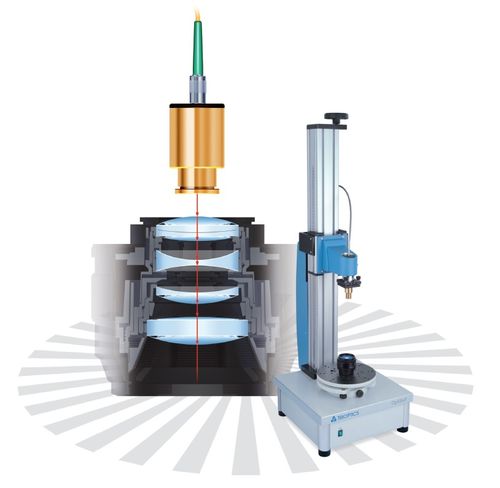

OptiSurf® is the ideal tool for non-contact center thickness and air gap measurements of single lenses, flat optics and within optical systems. The instrument is based on low coherence interferometry and measures all surface distances in an optical system with an accuracy up to 0.15 μm in one scan. In particular, the alignment of the sample with respect to the measurement axis has been greatly simplified compared to conventional systems: an innovative alignment tool together with the adjustable sample holder and the software allows even inexperienced operators to accurately align and measure lenses and optical systems. This time-saving innovation qualifies OptiSurf® for use in production.

OptiSurf® IR is the only system in the market that is capable to measure all infrared lens materials. As an update of an OptiCentric® IR system it is a perfect supplement for the high precision lens assembly processes of IR lenses.

Key Features

Measurement accuracy of 0.15 µm for center thickness and air gaps (OptiSurf® UltraPrecision)
Measurement in UV, VIS and IR (depending on version)
Easy input of sample data
Lens design import of Zemax files or OptiCentric® design files
Statistical analysis of measurement results
Automatic identification of lens surfaces and calculation of distances between surfaces
Software tool for fast and easy sample alignment
Non-contact measurement
