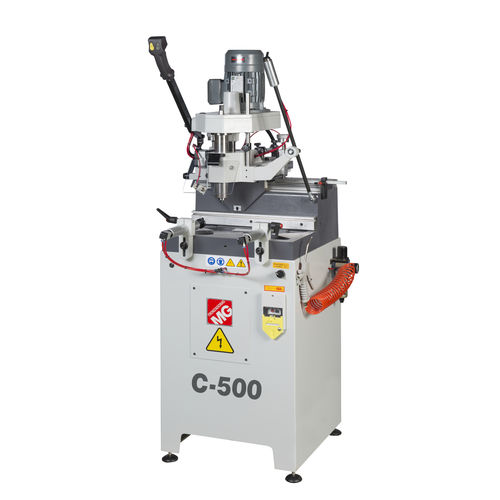

Aluminum copy router C-500-A

for plastics3-axisvertical

Semiautomatic machine to make lock housings, hinges, cylinders, etc. in aluminium or PVC. The milling is by means of cutting templates (with two tracers) or of transversal, longitudinal and vertical stops. Automatic refrigeration by spraying. The headstock has a stopping device to choose the height for the milling. •Table dimensions 500X280 mm •Longitudinal course 260 mm •TRansversal course 140 mm •Vertical movement 150 mm •Motor 1.00 Hp •Cutting speed 9000 rpm •Milling tool shaft diam. 8 mm •1004 x 680 x 1930 (150 Kg) •Wooden crate
