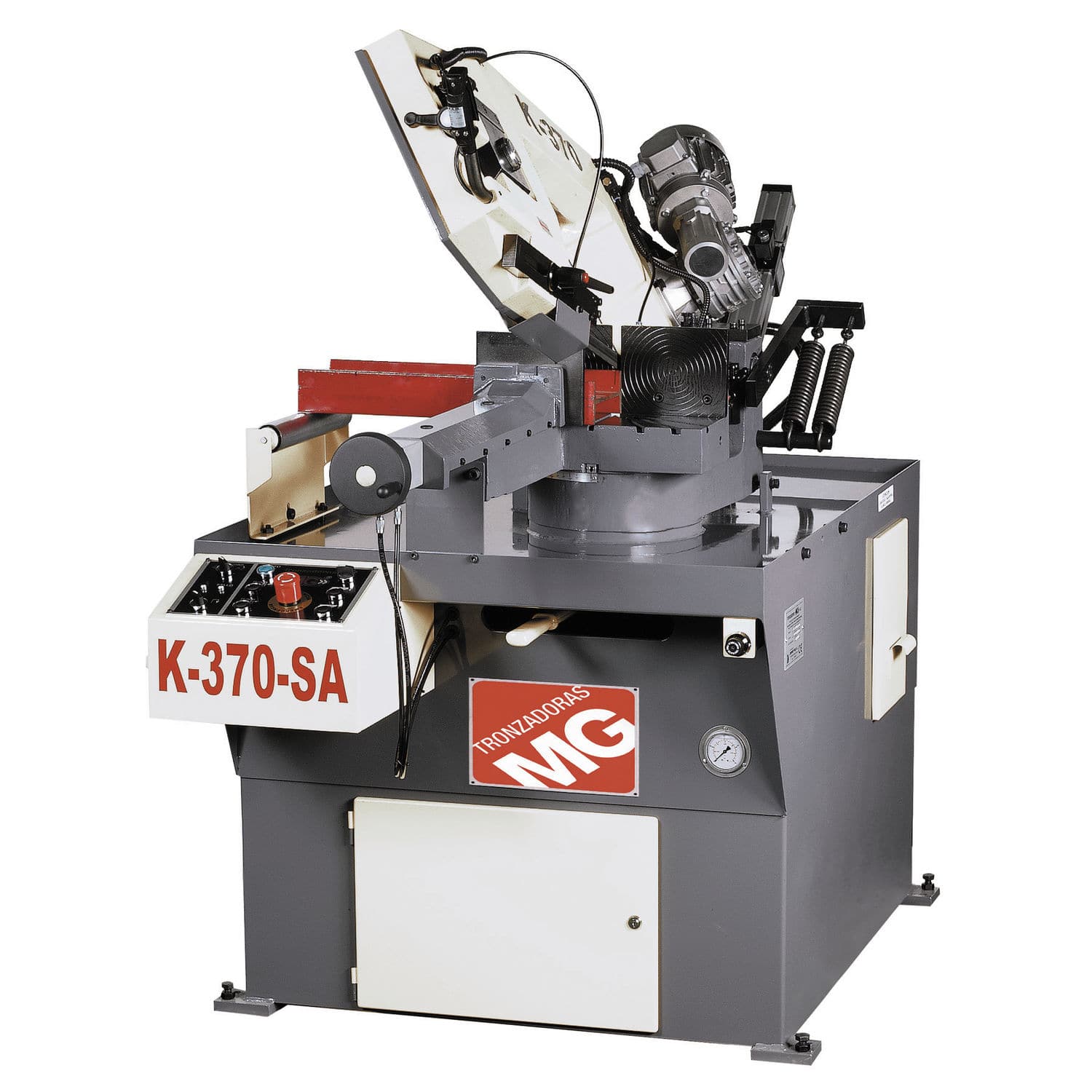

Semi-automatic horizontal band saw
K-370-SA
TRONZADORAS MG
Description:
Version with 0,25kw hydraulic motor.
Caracteristics:
Descent, stop, arch ascent, clamp opening and closing, all hydraulically operated
This version can be operated manually or automatically.
Specifications:
Dimensions of belt 3150x27x0,9 mm
Engine 1,1/1,5 kw
Cutting speeds 35/70 mt/min
Working height 995 mm
Emulsion pump 0,12 kw
Weight 480 kg
Dimensions 1600x1000x1500 mm
Acoustic 70 db
Cutting capacity round 90º 270 mm
Cutting capacity rectangular 90º 370x220 mm
Cutting capacity square 90º 220 mm
Cutting capacity round 45º right 240 mm
Cutting capacity rectangular 45º right 230x210 mm
Cutting capacity square 45º right 220 mm
Cutting capacity round 60º right 150 mm
Cutting capacity rectangular 60º right 150x130 mm
Cutting capacity square 60º right 130 mm
