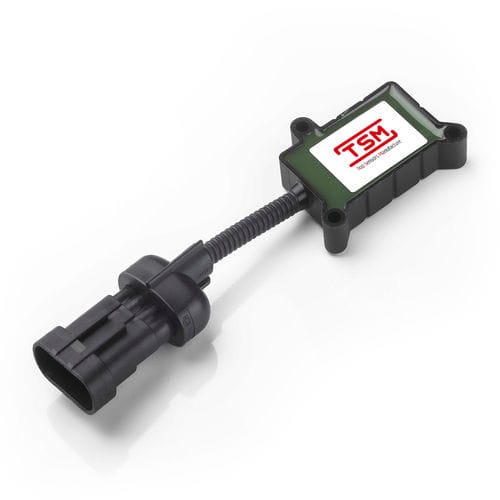

1-axis tilt sensor / 4-20 mA / MEMS / capacitive
TLP200 TSM SENSORS SRL

Characteristics

  • Number of axes:

    1-axis

  • Output:

    4-20 mA

  • Technology:

    MEMS, capacitive

  • Other characteristics:

    high-precision, temperature-compensated, IP67

  • Inclination:

    Min.: 0 °

    Max.: 360 °

  • Resolution:

    0.01 °

Description

Inclination Sensor with 1 axis MEMS technology

Description

Inclination Sensor with 1 axis MEMS technology.

TLP200 inclinometer working principle is based on a micro machined silicon capacitive transductor developed with MEMS technology.
Typically designed for mobile machine application: compact design, easy installation and integration, very strong solution, no mechanical moving part, able to tolerate high intensity mechanical shock.
Typical applications are cranes, knuckle boom cranes, access platforms, motor ladders, excavators, concrete pumps, drilling machines, everywhere is requested reliability and vibrations resistance.
