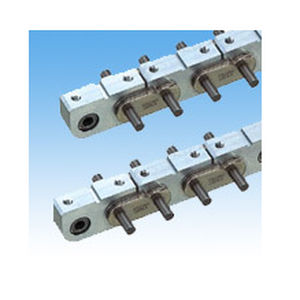

Aluminum conveyor chain Mini Tact
blocksmall-sizeneedle bearing

aluminum conveyor chain
aluminum conveyor chain
Add to favorites
Compare this product


Characteristics

Material
aluminum
Configuration
block
Other characteristics
small-size, needle bearing
Width

9 mm
(0 in)

Chain pitch

12.5 mm, 15 mm
(0.492 in, 0.591 in)

Tensile strength

30 kgf

Description

Uses steel needle bearings in the bearings. The inner block is made of aluminum and steel. Will not elongate further after initial elongation (0.01%). With its high precision, small chain pitch it enables high precision positioning of small work. Its light weight makes it possible to design compact including the drive unit. ※This chain is designed and manufactured for each individual customer's application and needs. Contact a Tsubaki representative for further information. Features ・Virtually no chain wear elongation after initial elongation (0.01%) following start of operation. ・Chain pitch accuracy is ±0.05mm, and chain pitch is small, making it perfect for high precision positioning of small work. ・Uses lightweight aluminum for the inner block, enable compact drives and designs. ・Operating Temperature Range :10℃~40℃ When selecting sprocket specifications It is necessary to select a sprocket specification that corresponds to the customer's operating environment and the chain specification used. Please use dedicated sprockets for Mini tact chain.
