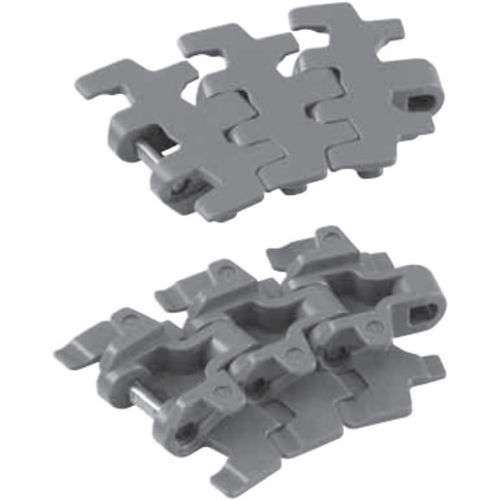

Plastic conveyor chain TPUSR series
blockslatted

plastic conveyor chain
plastic conveyor chain
plastic conveyor chain
plastic conveyor chain
Add to favorites
Compare this product


Characteristics

Material
plastic
Configuration
block, slatted
Width

55 mm, 83 mm
(2 in, 3 in)

Chain pitch

31.75 mm
(1.25 in)

Tensile strength

980 N

Description

Small side-flex radius (R=150mm) allows free layout and ideal for conveyance in tight spaces. Suitable for conveying unstable containers such as PET bottles, dessert cups, paper packs thanks to its comb-toothed plates. Features ・Small side-flex radius (R=150mm) Allows free layout and ideal for conveyance in tight spaces ・Uses a comb-toothed plate. Suitable for conveying unstable containers such as PET bottles, dessert cups, paper packs. ・When corner discs are used on curved areas, wear debris and squeaking noise are suppressed. ・Chain for sideflexing with float-preventive attachments (tabs) Prevents the chain from floating on corner section and ascending/descending conveyors, and scratches on top surface of plate on return side. ■Application The following are the industries we recommend. May not be used depending on conveying capacity (conveyor speed), material to be conveyed (weight, shape), environment and application. Use as a guide when selecting.
