DC electronic load
LD400 Series TTI

Add to MyDirectIndustry favorites

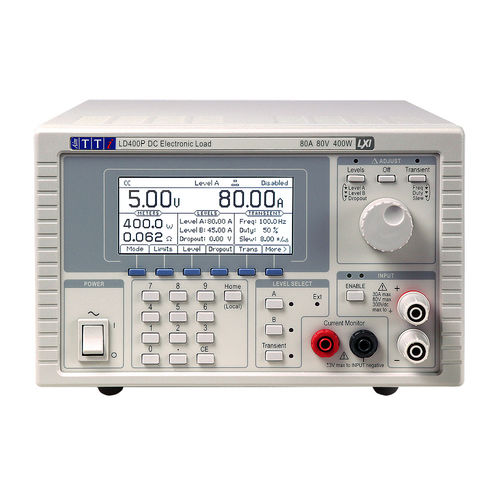

DC electronic load DC electronic load - LD400 Series
{{requestButtons}}

Characteristics

  • Options:

    DC

Description

Electronic DC Load, 80V, 80A, 400W with/without Remote Interfaces

Versatile solution for testing dc power sources
Constant current, resistance, conductance, voltage and power modes
Wide voltage and current range, 0 to 80V and 0 to 80A
400 watts continuous dissipation at 28oC (360W at 40oC)
600 watts short-term dissipation (up to 60 seconds)
Low minimum operating voltage of <1V at 40A
High resolution and accuracy for level setting
Built-in transient generator with variable slew
Current monitor output for waveform viewing
Variable drop-out voltage for battery testing
High resolution backlit graphic LCD with soft key control
Analog remote control of levels and TTL control of on/off and transient switching
Front and rear input terminals (front terminals 30A max.)
Full bus control via USB, RS232, GPIB and LXI compliant LAN interfaces (LD400P)
