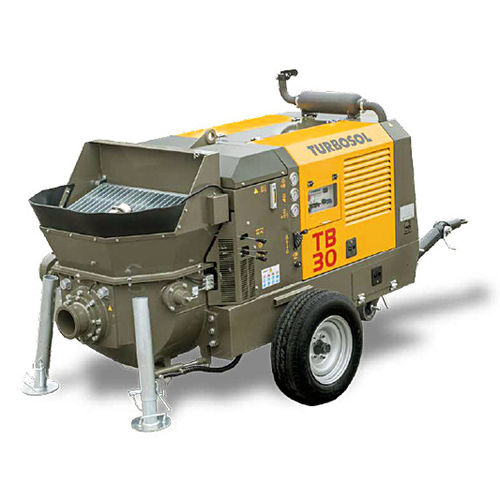

Trailer-mounted concrete pump TB 30
for constructiondiesel

trailer-mounted concrete pump
trailer-mounted concrete pump
trailer-mounted concrete pump
trailer-mounted concrete pump
trailer-mounted concrete pump
trailer-mounted concrete pump
trailer-mounted concrete pump
trailer-mounted concrete pump
trailer-mounted concrete pump
Add to favorites
Compare this product


Characteristics

Configuration
trailer-mounted
Applications
for construction
Type of fuel
diesel
Output

Min.: 4 m³/h
(141.3 ft³/h)

Max.: 30 m³/h
(1,059.4 ft³/h)

Pumping pressure

80 bar
(1,160.3 psi)

Power

35.5 kW, 36.4 kW
(48.3 hp, 49.5 hp)

Width

175 cm, 185 cm
(69 in, 73 in)

Length

330 cm, 455 cm
(130 in, 179 in)

Height

165 cm, 190 cm
(65 in, 75 in)

Weight

2,250 kg, 2,500 kg
(4,960 lb, 5,512 lb)

Description

Powerful, compact and reliable designed for heavy working conditions TB 30 is the new Turbosol stationary pump designed for pumping concrete, applying shotcrete and much more... Applications - Pumping up to 35 mm of concrete - Grout - Self-levelling floor screeds - Land reinforcement - Micro-piles, pressurized injection of mortars and slurries - Compaction grouting - Shotcrete works Technical comfort - The practical doors on the canopy and the new construction concept make maintenance and control operations quick and easy - Tubolar chassis including water, oil and diesel tanks - Central single lifting eye - Discharge door hydraulically operated for fast cleaning operations - Components generously dimensioned - Fully hydraulic controls - New internal setup concept - Compact design - New hopper-valve-agitator design ideal even for harsh concrete Versions - Pumping version with steel pipes and rubber hoses - Shotcrete version with rubber hose and shotcrete gun

VIDEO

Catalogs

TB 30
TB 30
2 Pages
