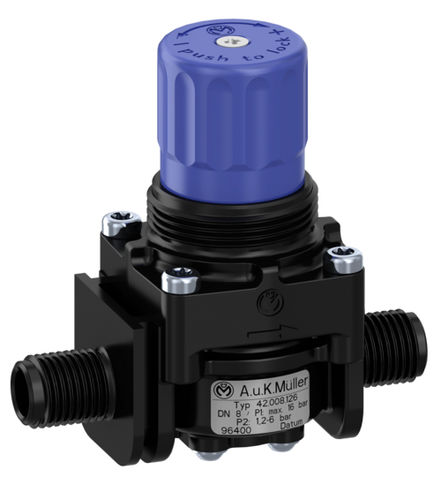

Water pressure regulator and reducer 42.008.126
stainless steelEPDMwith vulcanized elastomer profile

water pressure regulator and reducer
water pressure regulator and reducer
water pressure regulator and reducer
water pressure regulator and reducer
water pressure regulator and reducer
water pressure regulator and reducer
water pressure regulator and reducer
water pressure regulator and reducer
water pressure regulator and reducer
water pressure regulator and reducer
water pressure regulator and reducer
water pressure regulator and reducer
water pressure regulator and reducer
water pressure regulator and reducer
water pressure regulator and reducer
water pressure regulator and reducer
Add to favorites
Compare this product


Characteristics

Product
for water
Material
PA6 plastic, with vulcanized elastomer profile, stainless steel, EPDM
Applications
industrial, hydraulic, laboratory
Other characteristics
compact, relieving
Pressure

Max.: 8 bar
(116.03 psi)

Min.: 1.2 bar
(17.4 psi)

Orifice diameter

8 mm
(0.315 in)

Temperature

Max.: 85 °C
(185 °F)

Min.: 5 °C
(41 °F)

Description

The pressure regulator converts variable inlet pressures into a lower, constant outlet pressure. It can be used to protect equipment from high or inconsistent incoming medium pressure. This reduced and constant outlet pressure also enables a constant flow rate to be achieved independently of the incoming pressure. The orifice used to maintain this constant flow rate should be placed immediately after the pressure reducer. The pressure can easily be adjusted within the regulators specification range and is ideal for applications that require a constant flow rate or a specific timed volume delivery. To ensure operation and long reliability of the pressure regulator it is recommended that a dirt strainer is fitted to the inlet. Check valves or solenoid valves can be placed downstream of the regulator. The hydraulic functionality according to DIN EN 1567 is confirmed by an accredited laboratory. Furthermore, SVGW approved versions are available. Applications pressure reducing flow rate regulation protection of pressure caused damages of pipework downstream Pipework in home and industrial appliances Upstream to water inlet valves for appliances as vending and espresso machines, industrial appliances, steam ovens and others Characteristics Outlet pressure adjustable Balancing of inlet pressure Reduced noise of flow Hydraulic functionality in accordance to EN 1567 Long term performance capability by the use of high quality materials Technical data Construction straight Fitting position any, direction of flow marked by arrow Media Cold and heated potable water and physically and chemically similar media Attachment Using flange or center nut M 30 x 1,5
