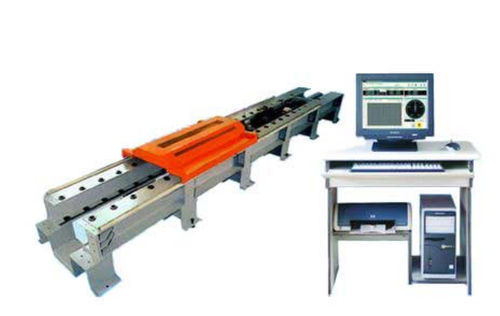

Tensile testing machine PT-HTT-01
digitalhorizontal

tensile testing machine
tensile testing machine
Add to favorites
Compare this product


Characteristics

Test type
tensile
Technology
digital
Configuration
horizontal

Description

It is mainly used to test mechanical properties of cable, wire, rope, chain and components. According to different control modes, there is digital display testing machine, microcomputer screen displaying testing machine and computer controlled servo testing machine, etc. Its stroke space and max. testing force can be designed based on users' needs. Technical Parameters: 1. Max. testing force: 600,1000,2000,3000,5000,10000 KN 2. Reading accuracy: ± 1% 3. Magnification of power values: x1, x2, x5, x10 automatic subsection (x20 or more optional) 4. Testing width: 1000mm 5. Testing length: 4,7,10,15,20 m (by users' choice) 6. Cylinder stroke: 750mm (or extended stroke) 7. Fixture adjusting spacing: 300mm 8. Power supply: 380V, 50Hz
